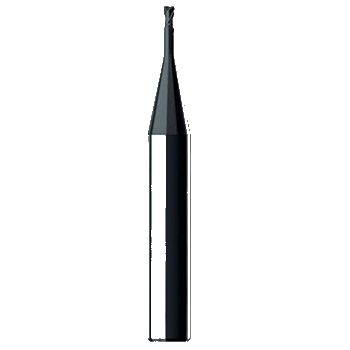

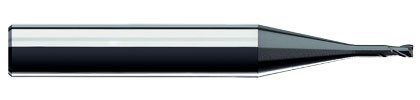

产品名称:2刃高速高效率钨钢长颈平底铣刀
- 所属分类：高速高效率钨钢铣刀
- 产品型号:KSA230SHPM
材质:0.2μ
镀层：TIALN
螺旋角度：30度
适合加工硬度：HRC50-60
单位：mm
镀层：TIALN
螺旋角度：30度
适合加工硬度：HRC50-60
单位：mm
订购热线：400-6848-288
应用范围
“KHC”是德国整体硬质合金铣刀品牌，使用世界上最先进的德国、瑞士研磨设备，采用欧洲高品质的钨钢棒材及搭配世界一流的镀层技术，造就了KHC钨钢铣刀高速、高效率、高硬度及高性价比的金属切削刀具。KSA230SHPM是高速高效率2刃平度钨钢铣刀，适合加工60度以下材料加工。目前“KHC钨钢铣刀”主要应用在3G产业、汽车电子、航空航天、模具机械等加工行业。
产品规格
产品参数下载
|
序号
|
描述
|
品名
|
Model NO. 产品编号 |
Dia. 刃径 |
Radius（R） 球头半径/R角 |
Flute Length 刃长 |
Shank Dia. 柄径 |
Overall Length 全长 |
Effective Length 有效长 |
|
1
|
2刃高速高效率平底铣刀
|
KSA230SHPM
|
K710201001504
|
0.1
|
|
0.15
|
4
|
50
|
0.15
|
|
2
|
K710202003004
|
0.2
|
|
0.3
|
4
|
50
|
0.3
|
||
|
3
|
K710203006004
|
0.3
|
|
0.5
|
4
|
50
|
0.6
|
||
|
4
|
K710203015004
|
0.3
|
|
0.5
|
4
|
50
|
1.5
|
||
|
5
|
K710203030004
|
0.3
|
|
0.5
|
4
|
50
|
3
|
||
|
6
|
K710204008004
|
0.4
|
|
0.6
|
4
|
50
|
0.8
|
||
|
7
|
K710204020004
|
0.4
|
|
0.6
|
4
|
50
|
2
|
||
|
8
|
K710204040004
|
0.4
|
|
0.6
|
4
|
50
|
4
|
||
|
9
|
K710205010004
|
0.5
|
|
0.8
|
4
|
50
|
1
|
||
|
10
|
K710205030004
|
0.5
|
|
0.8
|
4
|
50
|
3
|
||
|
11
|
K710205060004
|
0.5
|
|
0.8
|
4
|
50
|
6
|
||
|
12
|
K710205080004
|
0.5
|
|
0.8
|
4
|
50
|
8
|
||
|
13
|
K710205100004
|
0.5
|
|
0.8
|
4
|
50
|
10
|
||
|
14
|
K710206001204
|
0.6
|
|
0.9
|
4
|
50
|
1.2
|
||
|
15
|
K710206020004
|
0.6
|
|
0.9
|
4
|
50
|
2
|
||
|
16
|
K710206040004
|
0.6
|
|
0.9
|
4
|
50
|
4
|
||
|
17
|
K710206060004
|
0.6
|
|
0.9
|
4
|
50
|
6
|
||
|
18
|
K710206080004
|
0.6
|
|
0.9
|
4
|
50
|
8
|
||
|
19
|
K710206100004
|
0.6
|
|
0.9
|
4
|
50
|
10
|
||
|
20
|
K710208001604
|
0.8
|
|
1.2
|
4
|
50
|
1.6
|
||
|
21
|
K710208025004
|
0.8
|
|
1.2
|
4
|
50
|
2.5
|
||
|
22
|
K710208050004
|
0.8
|
|
1.2
|
4
|
50
|
5
|
||
|
23
|
K710208080004
|
0.8
|
|
1.2
|
4
|
50
|
8
|
||
|
24
|
K710208100004
|
0.8
|
|
1.2
|
4
|
50
|
10
|
||
|
25
|
K710210020004
|
1
|
|
1.5
|
4
|
50
|
2
|
||
|
26
|
K710210040004
|
1
|
|
1.5
|
4
|
50
|
4
|
||
|
27
|
K710210060004
|
1
|
|
1.5
|
4
|
50
|
6
|
||
|
28
|
K710210100004
|
1
|
|
1.5
|
4
|
50
|
10
|
||
|
29
|
K710210150004
|
1
|
|
1.5
|
4
|
50
|
15
|
||
|
30
|
K710210200004
|
1
|
|
1.5
|
4
|
60
|
20
|
||
|
31
|
K710210250004
|
1
|
|
1.5
|
4
|
70
|
25
|
||
|
32
|
K710215030004
|
1.5
|
|
2.3
|
4
|
50
|
3
|
||
|
33
|
K710215060004
|
1.5
|
|
2.3
|
4
|
50
|
6
|
||
|
34
|
K710215100004
|
1.5
|
|
2.3
|
4
|
50
|
10
|
||
|
35
|
K710215150004
|
1.5
|
|
2.3
|
4
|
50
|
15
|
||
|
36
|
K710215200004
|
1.5
|
|
2.3
|
4
|
60
|
20
|
||
|
37
|
K710215250004
|
1.5
|
|
2.3
|
4
|
70
|
25
|
||
|
38
|
K710220030004
|
2
|
|
3
|
4
|
50
|
3
|
||
|
39
|
K710220060004
|
2
|
|
3
|
4
|
50
|
6
|
||
|
40
|
K710220100004
|
2
|
|
3
|
4
|
50
|
10
|
||
|
41
|
K710220160004
|
2
|
|
3
|
4
|
50
|
16
|
||
|
42
|
K710220200004
|
2
|
|
3
|
4
|
60
|
20
|
||
|
43
|
K710220250004
|
2
|
|
3
|
4
|
60
|
25
|
||
|
44
|
K710220300104
|
2
|
|
3
|
4
|
70
|
30
|
||
|
45
|
K710230030004
|
3
|
|
3
|
4
|
50
|
3
|
||
|
46
|
K710230060004
|
3
|
|
3
|
4
|
50
|
6
|
||
|
47
|
K710230100004
|
3
|
|
3
|
4
|
50
|
10
|
||
|
48
|
K710230160004
|
3
|
|
3
|
4
|
60
|
16
|
||
|
49
|
K710230200004
|
3
|
|
3
|
4
|
60
|
20
|
||
|
50
|
K710230250004
|
3
|
|
3
|
4
|
80
|
25
|
||
|
51
|
K710230300004
|
3
|
|
3
|
4
|
80
|
30
|

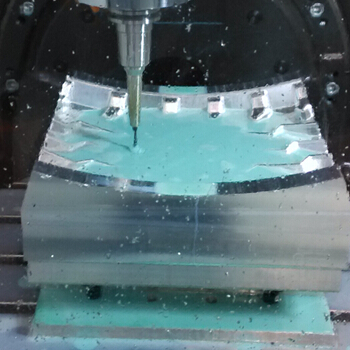

加工效果图

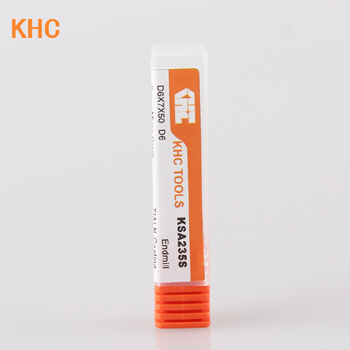

2刃高速高效率平底钨钢铣刀、加工图及外包装图：
